Radiosurgery Table

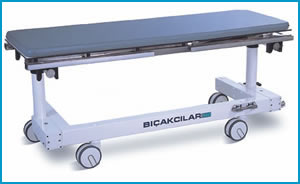

Bıçakcılar Mobiline 660 Radiosurgery table is designed for minor surgical procedures and examinations carried out utilizing C-arm radiological equipment. The tabletop height and Trendelenburg/reverse-Trendelenburg positions can be adjusted by a hydraulic foot pedal system in a non-vibrating manner. Head/backrest section is adjusted pneumatically by a block-lift mechanism.
Detachable tabletop consist of two sections: head-backrest and seat-leg. It is covered with 80 mm thick mattress cover for patient comfort, which can be easily removed for cleaning. With the central control mechanism for braking and true direction wheels can be released, two wheels can be stabilized in straight position or locked.
Stainless steel side rails allow easy mounting of different accessories. The "U" shape table base allows easy access to the tabletop and provides compatibility for use with C-arm radiological equipment.
| Height adjustment: | 750 mm -1050 mm |
| Height adjustment (w/mattress) | 830 mm - 1130 mm |
| Tabletop: | 640 mm x 1900 mm |
| Table base: | 630 mm x 1880 mm |
| Head-backrest section: | 590 mm x 760 mm |
| Seat / foot section: | 590 mm x 1110 mm |
| Patient surface: | 80 mm x 590 mm x 1900 mm |
| Net weight: | 120 kg |
| Gross weight: | 190 kg |
| Packing dimensions: | 2160 x 810 x 855 mm |
|
|
Table Positions |
|
Optional accessories: |
 |
Anaesthetist's frame |
|
|
I.V. stand |
|
|
Shoulder support |
|
Body support |
|
Arm board |
|
|
Arm support |
|
|
Foot support |
